How to build pipelines

AI summary
Explains how to build and test Imply Lumi pipelines to transform events. Walks you through how to configure and test regular expression parsing and timestamp mapping. Shows how to simulate the whole pipeline with sample data.

About AI summaries.

Pipelines transform incoming events by applying a sequence of processors to extract and modify data before it is ingested. When you build a pipelines, you can try out individual processors with sample data to verify that each processor produces the expected output before processing live events. After you've configured your pipeline you can simulate the complete pipeline to verify that all processors work together as intended.

In this tutorial, you learn how to build an Imply Lumi pipeline with different processor types and simulate a completed pipeline to test all processors sequentially.

The pipeline that you build in this tutorial processes events that are in Apache Combined Log Format. For details about the data format, see the tutorial data overview.

To learn about the types of processors available in Lumi, check out the processors reference.

Prerequisites​

To complete the tutorial, you need access to Lumi with the Data manager role or higher. For information on roles and permissions, see Manage roles.

1. Create a pipeline​

In this section, you create a pipeline that you use to test and simulate processors.

  1. From the Lumi navigation menu, click Pipelines.

  2. Click + Create pipeline.

  3. Enter pipeline details:

    • Name: Apache access combined logs
    • Description: Build pipelines tutorial
    • Expression: sourcetype=access_combined AND index=tutorial

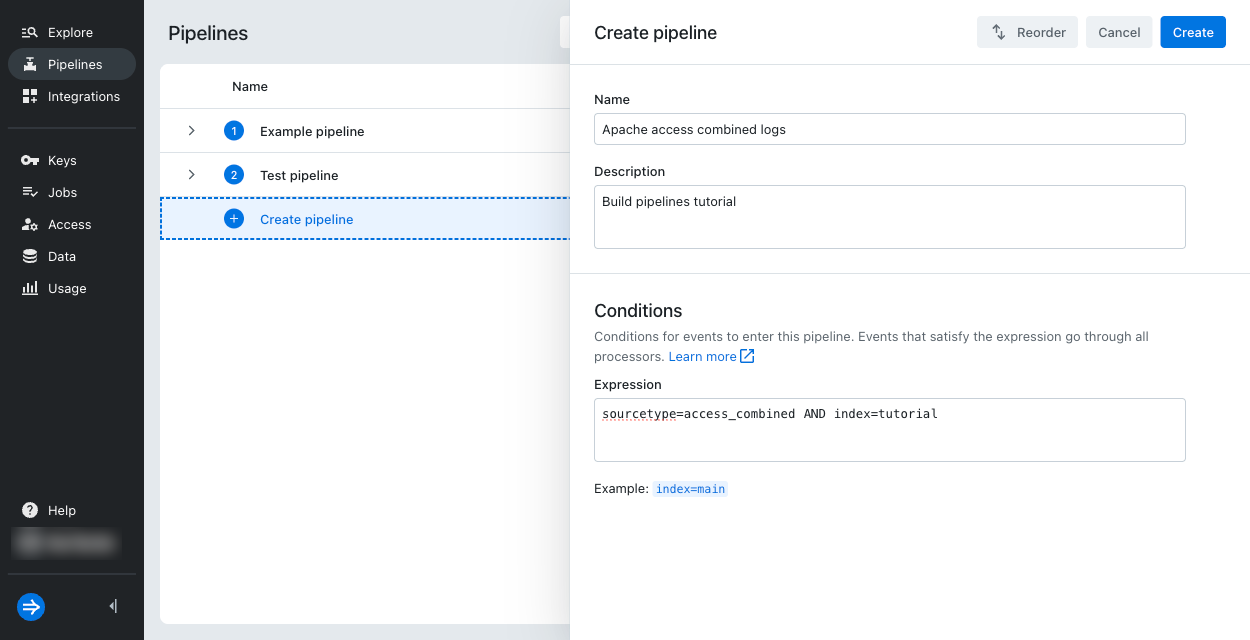

    Create pipeline

  4. Click Create.

2. Parse the log with regex​

Some processors enrich events by parsing details from an event message or other existing attributes. You can parse text using regular expressions (regex), grok patterns, or key-value patterns. In this section, you learn how to create and test a regex parser to verify parsing using a regular expression.

  1. From the Lumi navigation menu, click Pipelines, then select the pipeline you created in the previous section.

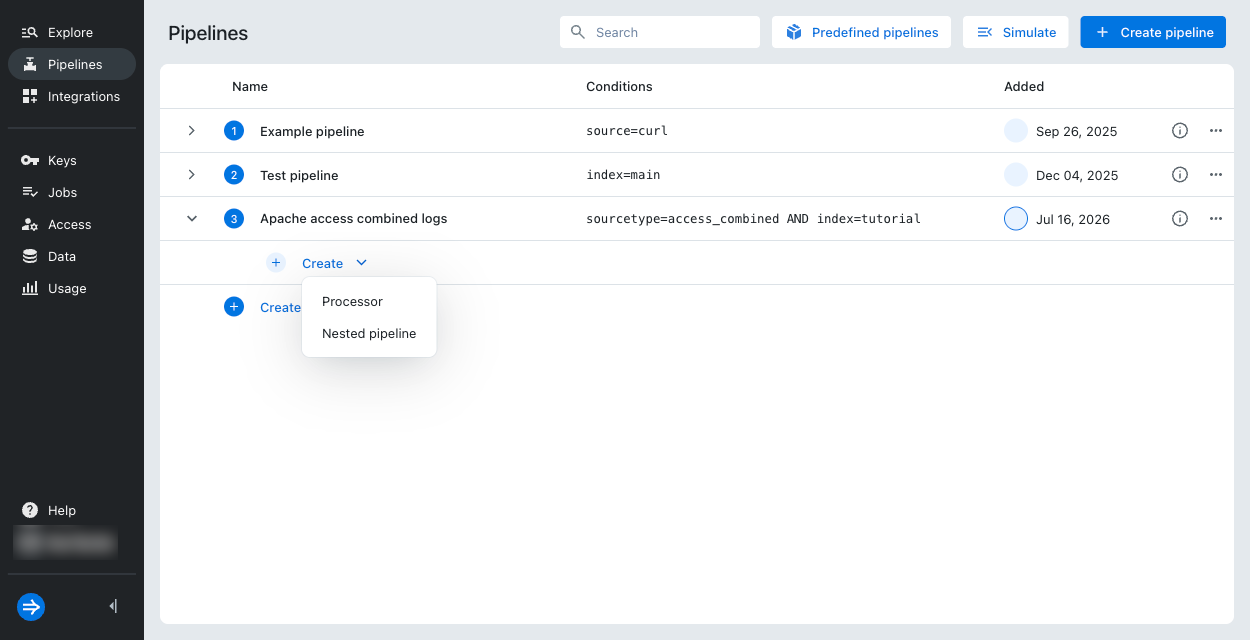

  2. Click Create > Processor. Create processor menu
  3. For Type, select Regex parser.
  4. Enter the processor configuration:

    • In Name, type Extract attributes.

    • In Source attribute, select Extract from log body.

    • In Regular expression, copy and paste the following regular expression:

      (?<clientip>[^ ]*) (?<ident>[^ ]*) (?<user>[^ ]*) \[(?<req_time>[^\]]*)\] "(?<method>\S+)(?: +(?<uri>[^\"]*?)(?: +(?<version>\S+))?)?" (?<status>[^ ]*) (?<bytes>[^ ]*)(?: "(?<referer>[^\"]*)" "(?<useragent>[^\"]*)")?

    • In Parsing behavior, select Named capture groups.

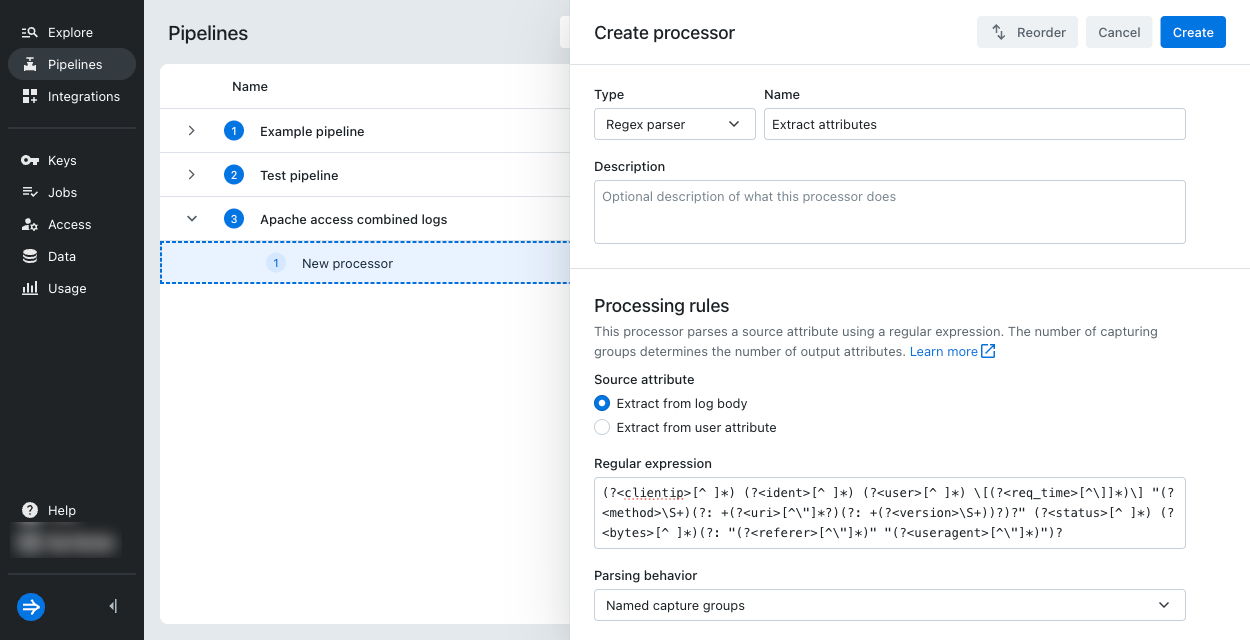

      Create regex parser

  5. Now, try out the processor to view the expected results. In the Try it out section, copy and paste the example event message into Sample:
    830:1e0e:525:e6a0:6479:cd69:c364:23c3 - - [24/Mar/2025:16:25:29 -0500] "POST /products/23394 HTTP/1.1" 200 1027 "https://techcrunch.com/" "Mozilla/5.0 (Windows NT 10.0; Win64; x64; rv:110.0) Gecko/20100101 Firefox/110.0"
  6. Review the parsed results in Expected output. It should resemble the following output:
    bytes: 1027
    clientip: 830:1e0e:525:e6a0:6479:cd69:c364:23c3
    ident: -
    method: POST
    version: HTTP/1.1
    referer: https://techcrunch.com/
    status: 200
    req_time: 24/Mar/2025:16:25:29 -0500
    uri: /products/23394
    user: -
    useragent: Mozilla/5.0 (Windows NT 10.0; Win64; x64; rv:110.0) Gecko/20100101 Firefox/110.0

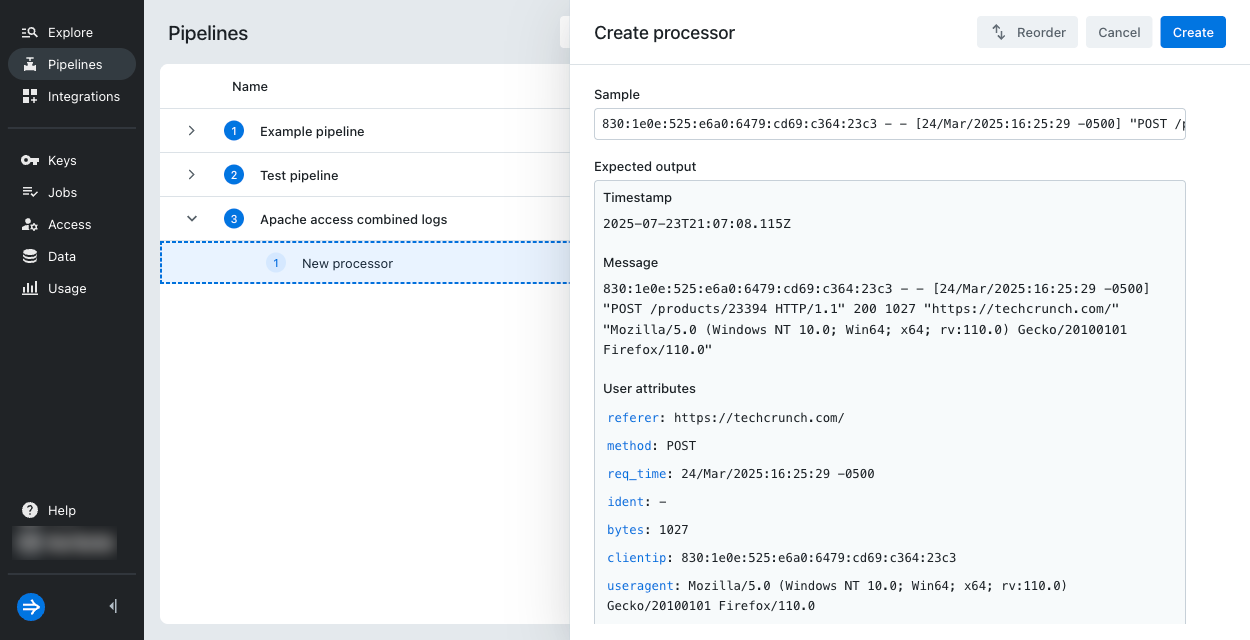

    Regex parser results
  7. Click Create.

3. Assign the event timestamp​

Some processors let you assign or overwrite the event timestamp, message, or user attributes. In this section, you learn how to create and test a timestamp mapper. You reassign the event timestamp from a user attribute extracted by the regex parser.

  1. In the same pipeline, click Create > Processor.

  2. For Type, select Timestamp mapper.

  3. Enter the processor configuration:

    • In Name, type Assign timestamp.

    • In Source attribute, enter req_time. Note the regex parser extracts several attributes, but the timestamp mapper only uses req_time. The other attributes persist unchanged.

    • In Time format, select CLF.

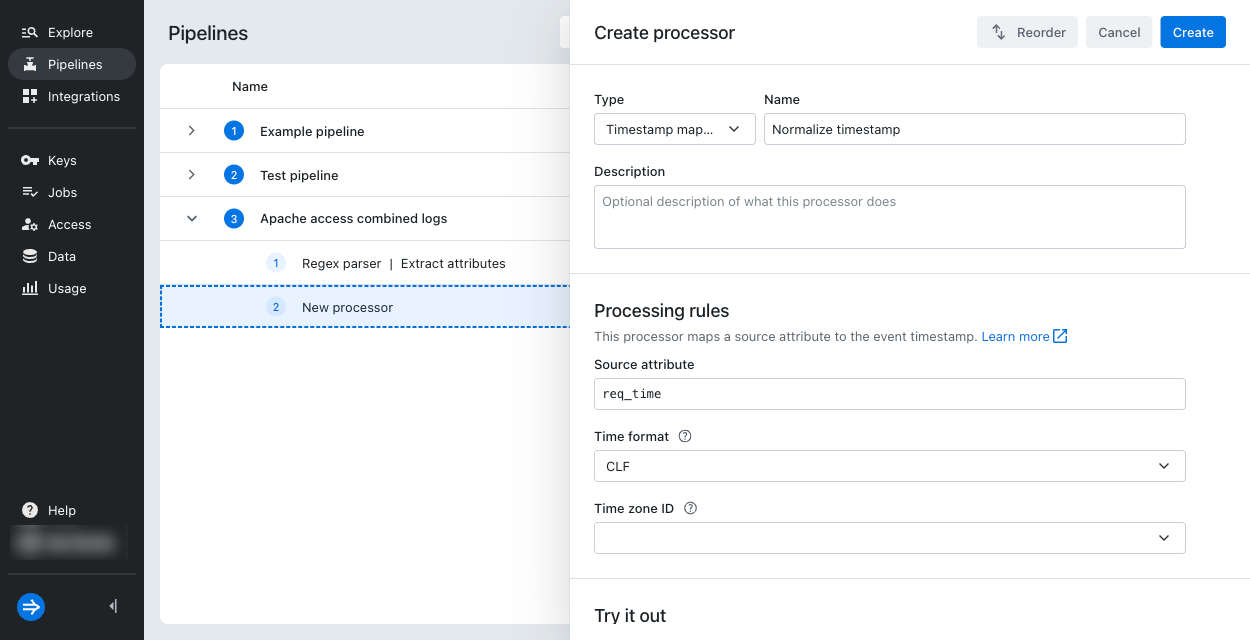

      Create timestamp mapper

  4. In the Try it out section, enter the following JSON into Sample attributes:

    {"req_time": "24/Mar/2025:16:25:29 -0500"}

    The req_time attribute comes directly from the output of the regex parser. This processor samples a JSON object containing the source attribute, whereas the regex parser samples the event message directly.

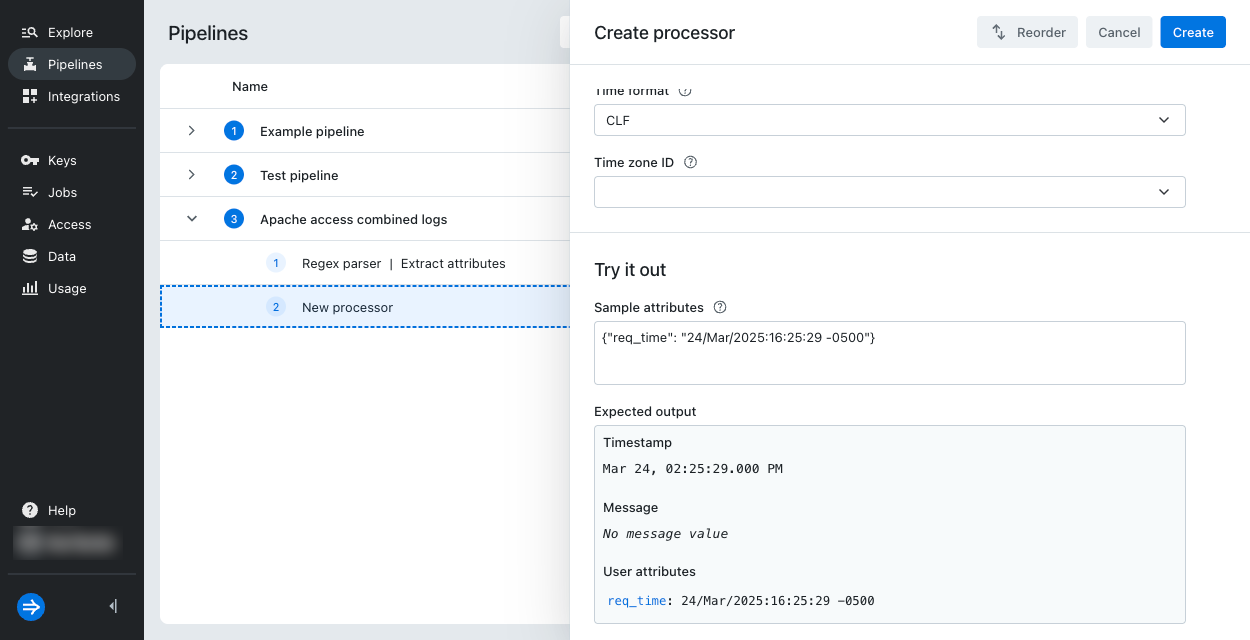

  5. Review the results in Expected output. The event timestamp should be Mar 24, 02:25:29.000 PM. Notice in the previous section that the original event timestamp was when Lumi received the event. Timestamp mapper results

  6. Click Create.

4. Simulate the pipeline​

In this section, you simulate your pipeline to observe how the regex parser and the timestamp mapper work together to transform events.

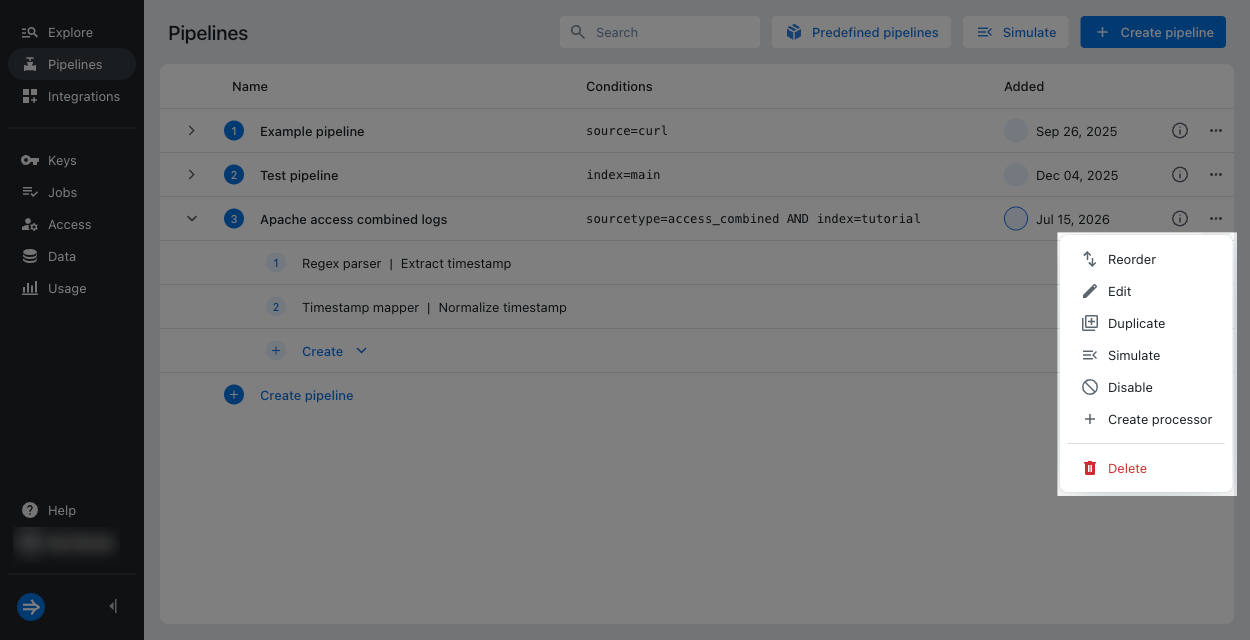

  1. On the Pipelines page, click the ellipsis next to the tutorial pipeline. Simulate pipeline popup

  2. Click Simulate.

  3. In Input events, copy and paste the following example event messages:

    830:1e0e:525:e6a0:6479:cd69:c364:23c3 - - [24/Mar/2025:16:25:29 -0500] "POST /products/23394 HTTP/1.1" 200 1027 "https://techcrunch.com/" "Mozilla/5.0 (Windows NT 10.0; Win64; x64; rv:110.0) Gecko/20100101 Firefox/110.0"
    86.199.197.103 - geraldine77 [14/Jul/2026:11:27:33 +0000] "GET / HTTP/1.1" 200 1656 "https://www.baidu.com/" "Mozilla/5.0 (iPhone; CPU iPhone OS 14_6 like Mac OS X) AppleWebKit/605.1.15 (KHTML, like Gecko) Version/14.1.1 Mobile/15E148 Safari/604.1"
    119.48.129.184 - rocketsmith [14/Jul/2026:23:49:29 +0000] "GET / HTTP/1.0" 200 4144 "https://www.tiktok.com/" "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Opera/77.0.4054.172 Chrome/91.0.4472.124 Safari/537.36"

    You can simulate multiple events at once. This example includes the same event you tested in the previous sections and adds two more events. The first event contains an IP address in IPv6 format, whereas the other events have IP addresses in IPv4 format. If there's variability in the format of your events, verify that the pipeline transforms them correctly through simulation.

  4. In the Additional attributes section, enter the pipeline conditions:

    • In Index, enter tutorial.
    • In Source type, enter access_combined.

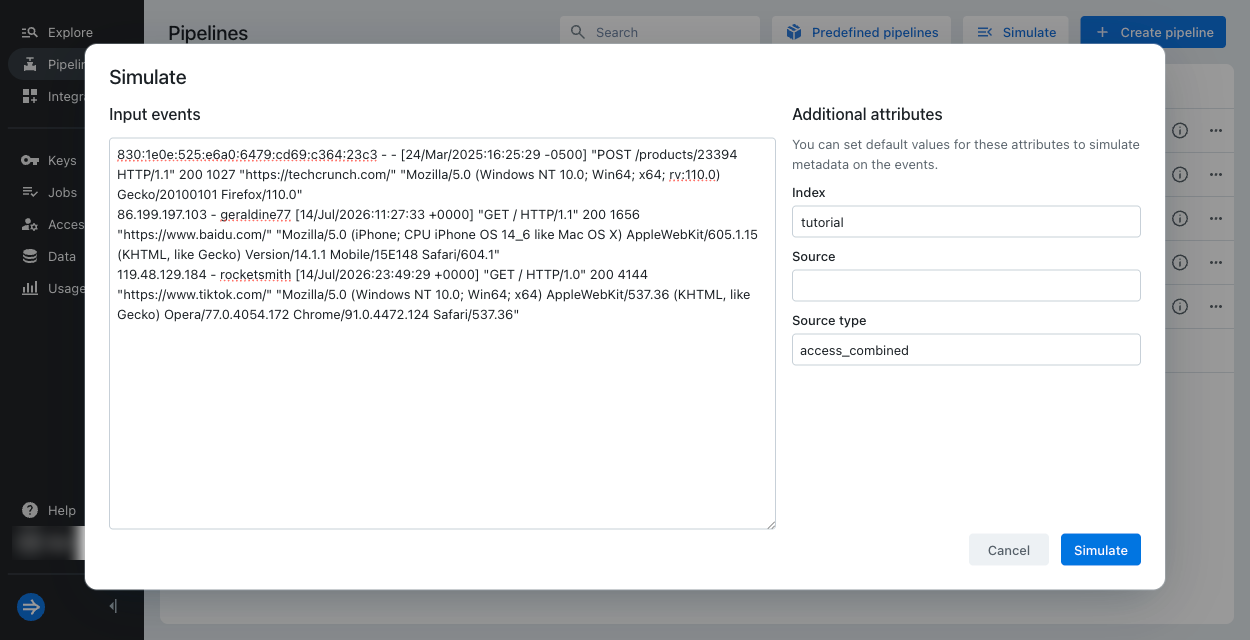

    Simulate pipeline

  5. Click Simulate.

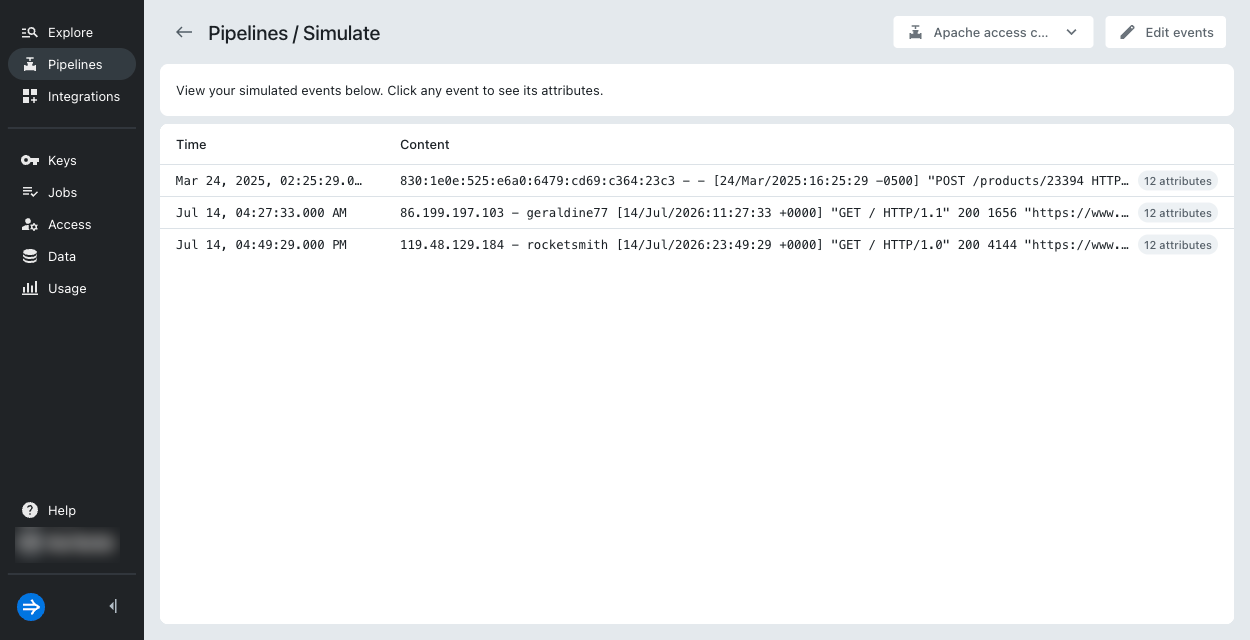

  6. On the Simulate page, select a simulated event. Simulate page

  7. Under User attributes, observe the following:

    • All of the attributes that were extracted by the regex parser are listed.
    • The regular expression correctly matched both formats of IP addresses for clientip.
    • At the top of the event pane, the event timestamp matches the timestamp extracted from the log message.

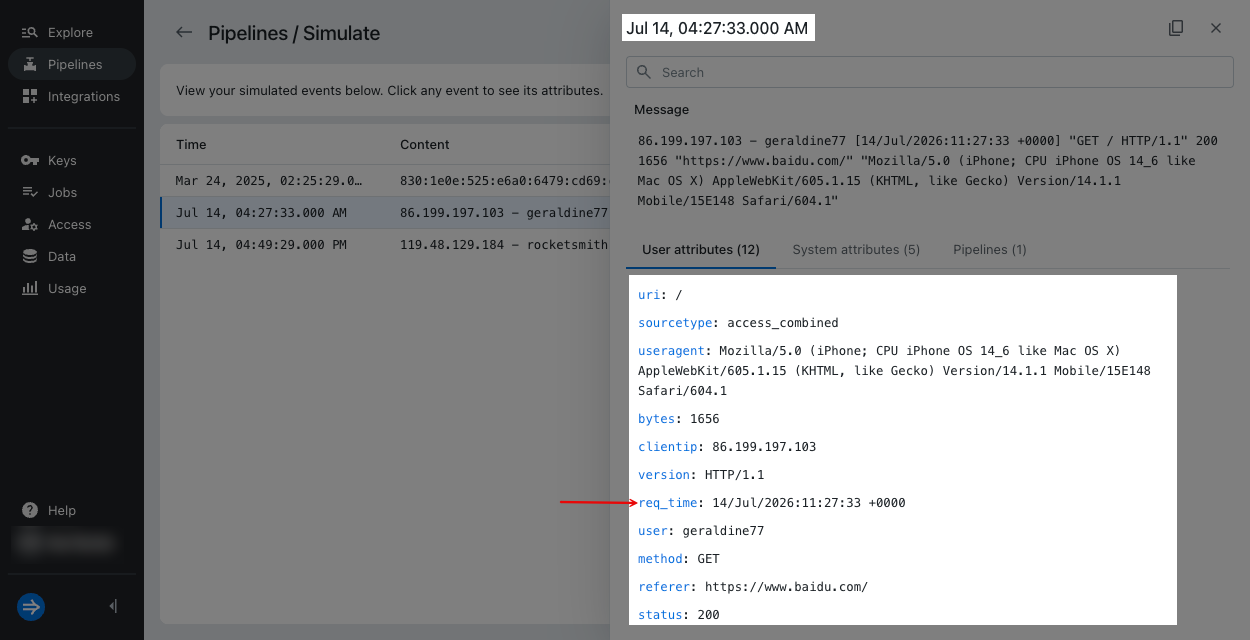

    Event user attributes In many cases, Lumi can parse the timestamp automatically or with a predefined pipeline, so you won't always need a timestamp mapper in your pipeline.

Try out more processors​

You can use the techniques you learned in this tutorial to try out more processors:

  1. Go to the processors reference and select a processor.
  2. Open the example for the processor. Use Processor configuration to create the processor in Lumi.
  3. Copy the sample Event input in the processor's Try it out section.
  4. Verify that you get the expected results from Event output.

Experiment with different processor types to deepen your understanding of how each processor transforms events and how you can apply them to various use cases within your pipelines.
