The next step in the tutorial workflow is learning how to use Splunk® standard federated search to query Imply Lumi events with SPL.

Standard mode requires the federated: prefix when searching. See Choosing a mode for information on selecting standard or transparent mode to query Lumi events.

This tutorial builds on the Quickstart and walks you through how to:

• Configure standard federated search to connect Splunk to Imply Lumi.
• Perform federated queries on Lumi events.

The steps assume that, as part of the Quickstart, you've already:

• Added web logs to Lumi using the file upload feature.
• Viewed and queried events in Lumi.

To complete the steps, you use sample web traffic data from a fictional online store. For background on the dataset and its format, see the tutorial data overview.

The following diagram summarizes the end-to-end process of searching events with Splunk. Yellow shaded boxes represent steps taken within Lumi, and blue shaded boxes represent steps taken outside Lumi. Click any box in the diagram to jump to that step.

Prerequisites

Before you begin, download an up-to-date version of the sample log file and upload it to Lumi.

To complete the tutorial, you need the following:

• Access to Lumi with the Viewer role or higher.
  For information on roles and permissions, see Manage roles.
• A Lumi IAM key with the federated search integration.
  See Create an IAM key for details.
• A Splunk user with the admin_all_objects and indexes_edit capabilities. The following roles have these capabilities by default. See the Splunk documentation on security for federated search for more information.
  • Splunk Cloud: sc_admin
  • Splunk Enterprise: admin

1. Retrieve details from Lumi

In this step, you retrieve the information you need from Lumi.

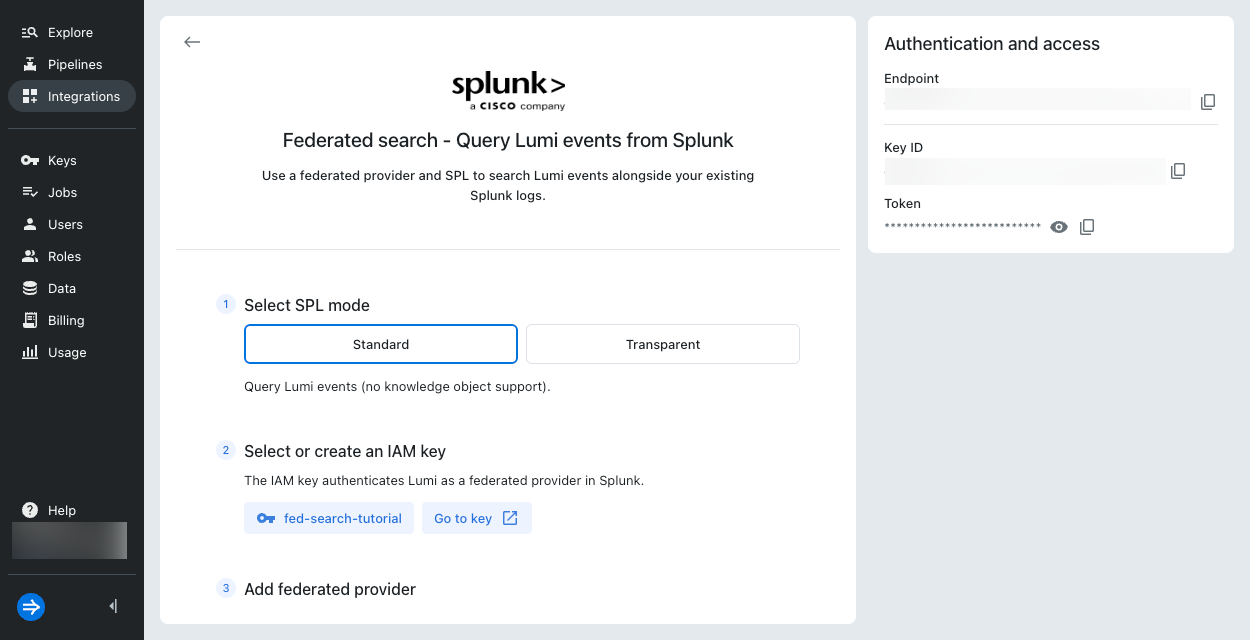

1. In Lumi, go to Integrations > Federated search.
2. Select Standard SPL mode.
3. Click Select or create key.
4. Select your IAM key in the drop-down menu and click Select. Lumi automatically enables the key for the federated search integration.
5. Copy the Remote host, Service account username, and Service account password. You'll need these details in the next step. Note that the remote host value is your Lumi host address prefixed by your IAM key ID, for example 8ee97d51-97f8-4c51-b44a-4b5bd7175abc.us1.spl.lumi.prod.imply.io:443.

2. Create a standard federated provider

In this step, you add Lumi as a standard federated provider in Splunk. The federated provider connects to Lumi using your IAM key and Lumi host details.

1. In Splunk Web, go to Settings ❯ Federation ❯ Add federated provider.
2. Enter the following fields to integrate with Lumi:
   • Provider mode: Standard.
   • Provider name: federated-search-tutorial. Must be lowercase.
   • Remote host: Remote host value you copied in the previous step.
   • Service account username: Service account username you copied in the previous step.
   • Service account password: Service account password you copied in the previous step.
3. Leave all other fields unchanged and click the Agree checkbox.
4. Test the connection.
5. Once the connection is successful, click Save.
6. In the federated providers list, find federated-search-tutorial and set its status to Active. Important: Deactivate any other federated providers to this Lumi source. You can only have one active at a time.

3. Create a federated index

In this step, you create a federated index in Splunk. The federated index connects to an index in Lumi. In this case, the index is set to main in the sample data.

1. In Splunk Web, go to Settings ❯ Federation ❯ Federated Indexes > Add federated index.
2. Select For Splunk to Splunk provider.
3. Complete the following fields:
   • Federated index name: search-tutorial
   • Federated provider: federated-search-tutorial
   • Remote dataset type: Index
   • Dataset name: main
4. Click Save.

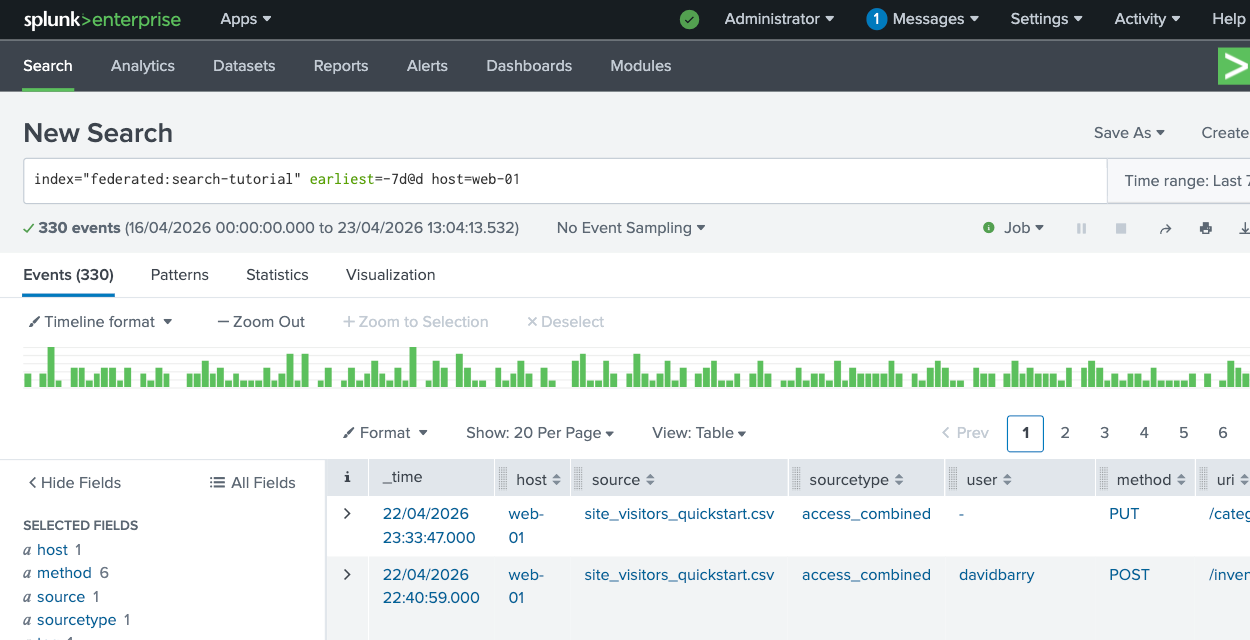

4. Test federated search

In this step, you test your federated search setup.

1. In Splunk Web, go to the Search & Reporting app.
2. Set the time range to the last 7 days. You can also include earliest=-7d@d times in the query as shown below, which overrides the time range selector.
3. Enter the following query:

   index="federated:search-tutorial" earliest=-7d@d host=web-01

This returns events from the sample log file in Lumi and includes host to filter out any other events in the same time range.

5. Run federated queries

In this step, you run a series of federated queries to explore site traffic, identify errors, understand request patterns, and enrich the data with a calculated field.

The example output may not exactly match yours. The queries use a relative 7-day time range, and the sample data has fixed timestamps, so results depend on when you downloaded the file.

1. List the top 5 uri by access count:

   index="federated:search-tutorial" earliest=-7d@d host=web-01
   | top uri limit=5

   Example output:

   uri	count	percent
   /categories	123	37.272727
   /cart	44	13.333333
   /admin	38	11.515152
   /	32	9.696970
   /search	21	6.363636

2. Show events with status 500 or higher, and count how many times each status occurred:

   index="federated:search-tutorial" earliest=-7d@d host=web-01
   | where status >= 500
   | stats count by status

   Example output:

   status	count
   500	3
   502	7
   503	9
   504	3

3. Find all requests for a particular user with status not equal to 200, and display the specified fields in a table:

   index="federated:search-tutorial" earliest=-7d@d host=web-01
   | where status != 200
   | where user = "gusosborne"
   | table _time user status uri_path

   Example output:

   _time	user	status	uri_path
   2025-07-29 02:58:09	gusosborne	403	/
   2025-07-25 15:26:02	gusosborne	304	/product/eclipse-wall-sconce
   2025-07-25 16:53:47	gusosborne	304	/cart
   2025-07-29 02:51:29	gusosborne	403	/categories/smart-lighting/app-controlled-lamp

4. Show average bytes per method, rounded to 2 decimal places:

   index="federated:search-tutorial" earliest=-7d@d host=web-01
   | stats avg(bytes) as avg_bytes by method
   | eval avg_bytes = round(avg_bytes, 2)

   Example output:

   method	avg_bytes
   DELETE	4548.42
   GET	4517.34
   OPTIONS	1235.00
   POST	5601.80
   PUT	5002.06

5. Extract the operating system from the useragent field, count how often each OS appears, and display the five most common ones:

   index="federated:search-tutorial" earliest=-7d@d host=web-01
   | rex field=useragent "\((?<os>[^;]+);"
   | stats count by os
   | sort -count
   | head 5

   Example output:

   os	count
   Macintosh	114
   Windows NT 10.0	86
   Linux	70
   iPhone	18
   Windows NT 6.1	16

6. Add a field to mark responses with bytes greater than 5000:

   index="federated:search-tutorial" earliest=-7d@d host=web-01
   | eval big_response = if(bytes > 5000, "yes", "no") | table bytes, big_response

   Example output:

   bytes	big_response
   8934	yes
   2659	no
   452	no
   917	no

Learn more

To build on this tutorial, follow How to convert a Splunk dashboard for federated search to update a Splunk dashboard to use federated search queries against Lumi.

See the following topics for more information:

• How to query Lumi using transparent federated search to walk through transparent federated search setup and example queries.
• Search events with Splunk for details on configuring federated search of Lumi events within Splunk.
• Federated search reference for federated search examples using SPL commands, functions, and expressions that Lumi supports.
