How to query Lumi using transparent federated search

AI summary

Explains how to set up Imply Lumi as a transparent federated data provider in Splunk®. Covers connecting Splunk to Lumi using IAM credentials and running transparent federated queries. Demonstrates exploring traffic patterns in Lumi web events.

About AI summaries.

The final step in the tutorial workflow is learning how to use Splunk® transparent federated search to query Imply Lumi events with SPL.

Transparent mode doesn't require the federated: prefix when searching, which is useful when you want to retrieve both Splunk and Lumi results with a single query. It allows you to query using data models and enrich Lumi results with lookups. See Choosing a mode for information on selecting standard or transparent mode to query Lumi events.

This tutorial builds on the Quickstart and walks you through how to:

• Configure transparent federated search to connect Splunk to Imply Lumi.
• Perform federated queries on Lumi events.

The steps assume that, as part of the Quickstart, you've already:

• Added web logs to Lumi using the file upload feature.
• Viewed and queried events in Lumi.

To complete the steps, you use sample web traffic data from a fictional online store. For background on the dataset and its format, see the tutorial data overview.

The following diagram summarizes the end-to-end process of searching events with Splunk. Yellow shaded boxes represent steps taken within Lumi, and blue shaded boxes represent steps taken outside Lumi. Click any box in the diagram to jump to that step.

Prerequisites

Before you begin, download an up-to-date version of the sample log file and upload it to Lumi.

To complete the tutorial, you need the following:

• Access to Lumi with the Viewer role or higher.
  For information on roles and permissions, see Manage roles.
• A Lumi IAM key with the federated search integration.
  See Create an IAM key for details.
• A Splunk user with the admin_all_objects and indexes_edit capabilities. The following roles have these capabilities by default. See the Splunk documentation on security for federated search for more information.
  • Splunk Cloud: sc_admin
  • Splunk Enterprise: admin

1. Retrieve details from Lumi

In this step, you retrieve the information you need from Lumi.

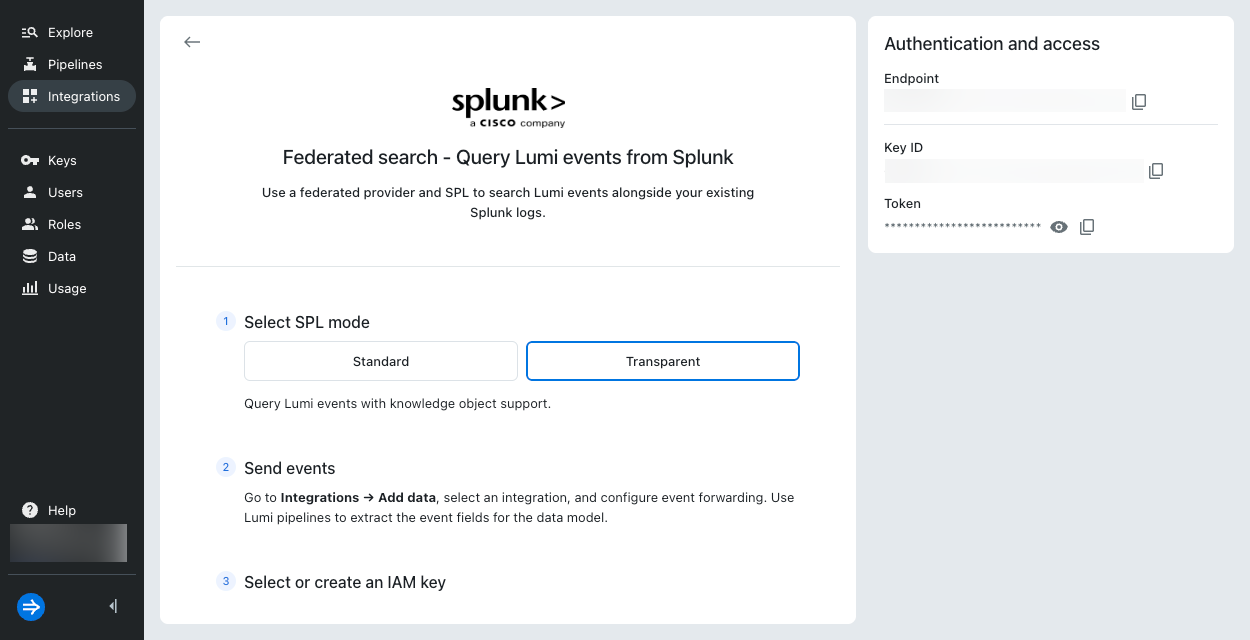

1. In Lumi, go to Integrations > Federated search.
2. Select Transparent SPL mode.
3. Click Select or create key.
4. Select your IAM key in the drop-down menu and click Select. Lumi automatically enables the key for the federated search integration.
5. Copy the Remote host, Service account username, and Service account password. You'll need these details in the next step. Note that the remote host value is your Lumi host address prefixed by your IAM key ID, for example 8ee97d51-97f8-4c51-b44a-4b5bd7175abc.us1.spl.lumi.prod.imply.io:443.

2. Create a transparent federated provider

In this step, you add Lumi as a transparent federated provider in Splunk. Unlike standard mode, you don't need to create a federated index. Splunk routes queries to Lumi automatically through the provider.

1. In Splunk Web, go to Settings > Federation > Federated Providers > Add federated provider.
2. Select Splunk, then click Next.

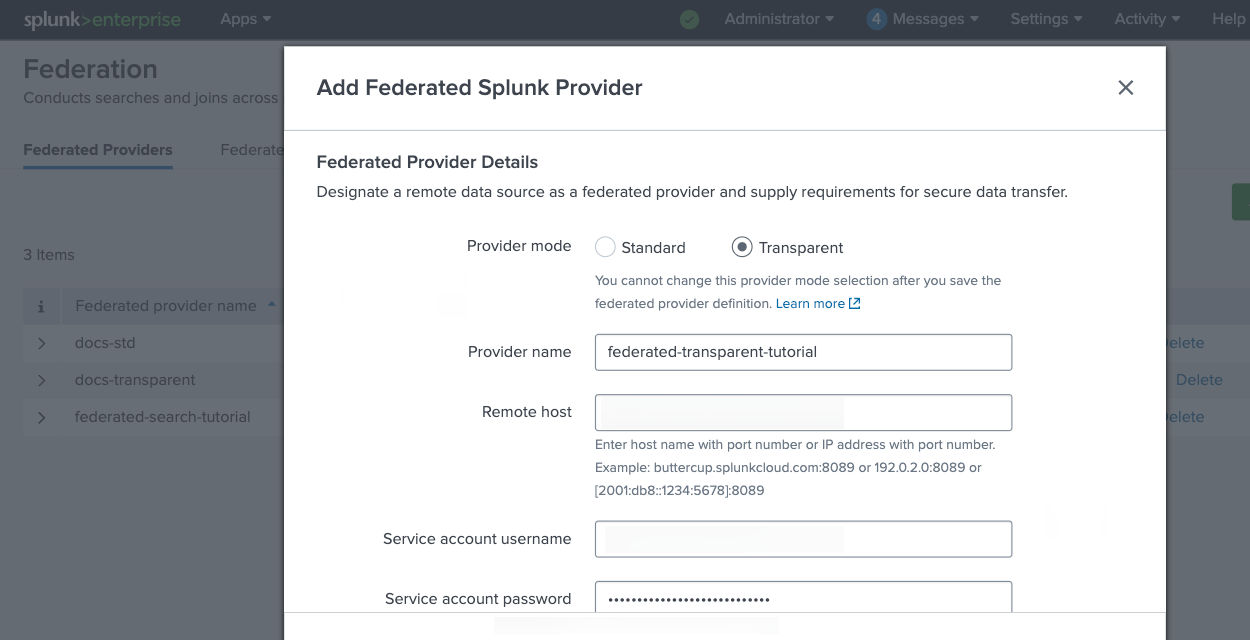

3. Complete the following fields:
   • Provider mode: Transparent.
   • Provider name: federated-transparent-tutorial. Must be lowercase.
   • Remote host: Your Lumi host address.
   • Service account username: IAM key ID you copied in the previous step.
   • Service account password: IAM key token you copied in the previous step.
4. Leave all other fields unchanged and click the Agree checkbox.
5. Test the connection.
6. Once the connection is successful, click Save.
7. In the federated providers list, find federated-transparent-tutorial and set its status to Active. Important: Deactivate any other federated providers to this Lumi source. You can only have one active at a time.

3. Test federated search

In this step, you confirm that transparent federated search is returning events from Lumi.

1. In Splunk Web, go to the Search & Reporting app.

2. Set the time range to the last 7 days. You can also include earliest=-7d@d in the query as shown below, which overrides the time range selector.

3. Run the following query:

   sourcetype=access_combined earliest=-7d@d host IN (web-01,proxy-01)
   | stats count by host

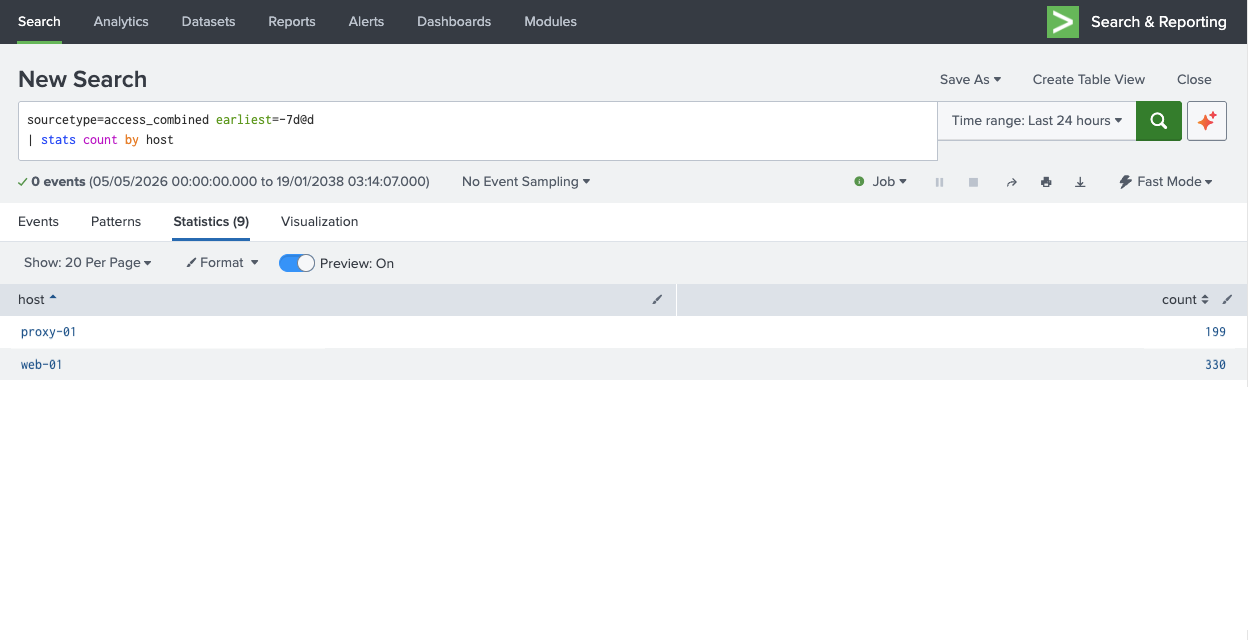

   You should see results for the two hosts in the sample log file:



4. Run federated queries

In this step, you run a series of queries to explore traffic patterns in the Lumi sample data.

The example output may not exactly match yours. The queries use a relative 7-day time range, and the sample data has fixed timestamps, so results depend on when you downloaded the file.

1. Count requests by HTTP method and host:

   sourcetype=access_combined earliest=-7d@d host IN (web-01,proxy-01)
   | stats count by host method
   | sort host method

   Example output:

   host	method	count
   proxy-01	DELETE	42
   proxy-01	GET	54
   proxy-01	POST	50
   proxy-01	PUT	53
   web-01	DELETE	83
   web-01	GET	67
   web-01	OPTIONS	1
   web-01	POST	89
   web-01	PUT	89

2. Count error responses (status 500 or higher) by host:

   sourcetype=access_combined earliest=-7d@d host IN (web-01,proxy-01)
   | where status >= 500
   | stats count by host

   Example output:

   host	count
   proxy-01	24
   web-01	22

3. Show the top 5 pages by request count across all sources:

   sourcetype=access_combined earliest=-7d@d host IN (web-01,proxy-01)
   | top uri_path limit=5

   Example output:

   uri_path	count	percent
   /cart	72	13.615086
   /	46	8.695652
   /search	31	5.860113
   /categories/indoor-lighting/aurora-chandelier	21	3.969754
   /checkout	20	3.780718

4. Compare average response size by host:

   sourcetype=access_combined earliest=-7d@d host IN (web-01,proxy-01)
   | stats avg(bytes) as avg_bytes by host
   | eval avg_bytes = round(avg_bytes, 2)

   Example output:

   host	avg_bytes
   proxy-01	4993.58
   web-01	4948.03

5. Find all error responses for a specific user across all sources:

   sourcetype=access_combined earliest=-7d@d host IN (web-01,proxy-01)
   | where status >= 400
   | where user = "gusosborne"
   | table _time host status method uri_path
   | sort _time

   Example output:

   _time	host	status	method	uri_path
   2026-05-11 21:43:27	web-01	403	DELETE	/
   2026-05-07 00:00:53	web-01	403	GET	/categories/smart-lighting/app-controlled-lamp
   2026-05-08 12:10:28	proxy-01	401	GET	/categories/led-lighting/ultra-bright-led-bulb

Learn more

To build on this tutorial, see:

• How to query Lumi using standard federated search to walk through standard federated search setup and example queries.
• Search events with Splunk for details on configuring federated search of Lumi events within Splunk.
