Define custom time formats

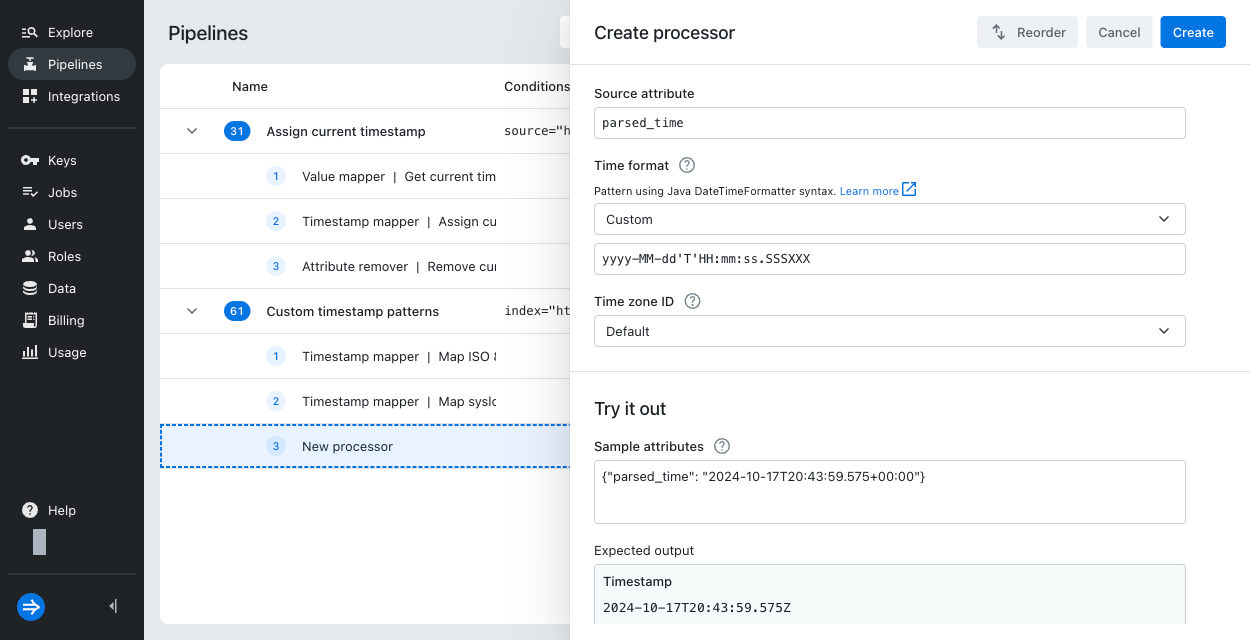

The timestamp on an event in Imply Lumi describes when the event occurred. Lumi can parse common timestamp formats, such as ISO 8601. If your event timestamp doesn't fit a standard format, you can create a pipeline to manually assign the format using a timestamp processor. In the processor, you designate the Custom time format to define your own timestamp pattern.

The custom time format uses DateTimeFormatter syntax. For example, the pattern yyyy represents a four-digit year like 2026. If processing fails, such as from an invalid pattern, Lumi assigns the current timestamp.

This topic provides more information about the custom time format and gives examples for common log types.

Common patterns

This section provides a subset of DateTimeFormatter syntax for common timestamp patterns. Note that all patterns are case-sensitive. For example, a lowercase m represents minutes, but an uppercase M represents month.

Don't confuse the custom time format with the POSIX standard strptime format. strptime format always uses two-character codes starting with % and doesn't use pattern repetition such as yyyy. The table includes strptime directives you can use for comparison and translation to use in Lumi.

Category	Lumi pattern	Example	Description	strptime
Year	yy	26	2-digit year; Java uses 2000 as the base year	%y
	yyyy	2026	4-digit year	%Y
Month	MM	01	Month number	%m
	MMM	Jan	Abbreviated month name	%b
	MMMM	January	Full month name	%B
Day	dd	16	2-digit day	%d
Hour	HH	23	Hour based on 24-hour clock	%H
Minute	mm	59	2-digit minute	%M
Second	ss	31	2-digit second	%S
Fraction of second	SSS	123	Partial seconds; specify up to 9 instances of S based on the time granularity	%f (exactly six digits)
Time zone	z	UTC	Name of the time zone	%Z
	Z	+0100	Offset from UTC, where a zero offset is denoted by +0000	%z
	X	+01:00 or Z	Offset from UTC, where a zero offset is denoted by the value Z	%z

Examples by log type

The following table shows the custom time patterns for some common log types:

Log type	Example timestamp	Pattern
Windows event log (XML)	2026-03-24T14:32:07.483000000Z	yyyy-MM-dd'T'HH:mm:ss.SSSSSSSSSX
Palo Alto Networks firewall	2026/01/22 02:20:18	yyyy/MM/dd HH:mm:ss
syslog (RFC 3164)	Oct 18 02:31:00	MMM dd HH:mm:ss
Java application	2026-03-05 21:30:58.000 CET	yyyy-MM-dd HH:mm:ss.SSS z
Cisco ASA	Apr 01 2026 09:36:50	MMM dd yyyy HH:mm:ss

For timestamps that don't contain the year component, see how Lumi assigns the missing year.

Time zone patterns

Timestamps can store the time zone in various formats, such as its name or UTC offset. The following table lists the time zone patterns you can use in the custom time format specification.

Use square brackets [] to denote optionality. For example, yyyy-MM-dd'T'HH:mm:ss[XX], if some timestamps don't have a time zone.

Symbol	Time zone representation	Example timestamp	Example pattern
z	Time zone name	Wed, 01 Oct 2025 13:55:36 GMT	EEE, dd MMM yyyy HH:mm:ss z
Z	Offset from UTC, +HHMM or -HHMM	01/Oct/2025:22:55:36 +0900	dd/MMM/yyyy:HH:mm:ss Z
X	Offset from UTC, +HH	2025-10-01T14:55:36+01	yyyy-MM-dd'T'HH:mm:ssX
XX	Offset from UTC, +HHMM	2025-10-01T14:55:36+0100	yyyy-MM-dd'T'HH:mm:ssXX
XXX	Offset from UTC, +HH:MM	2025-10-01T14:55:36+01:00	yyyy-MM-dd'T'HH:mm:ssXXX
O	Localized offset from UTC, short form	2025-10-01T14:55:36 GMT+1	yyyy-MM-dd'T'HH:mm:ss O
OOOO	Localized offset from UTC, long form	2025-10-01T14:55:36 GMT+01:00	yyyy-MM-dd'T'HH:mm:ss OOOO
VV	Time zone ID	2025-10-01T09:55:36 America/New_York	yyyy-MM-dd'T'HH:mm:ss VV

Learn more

For more information, see the following topics:

• Time formats for available time format options in Lumi.
• Manual timestamp mapping for a step-by-step guide on assigning the event timestamp.
• Timestamp processor for reference on the timestamp processor.
